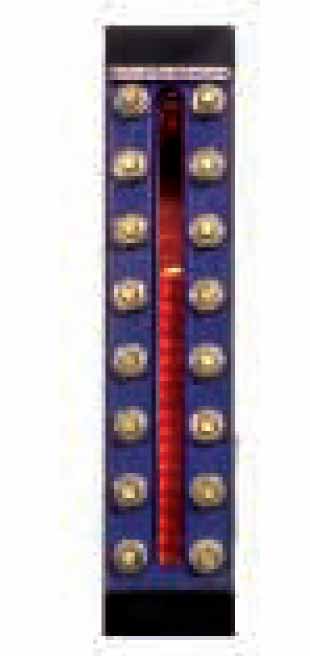

ST-1000
with SLI-A Illuminator

• Fully ASME compliant
• Multiple sections with minimum 1'' overlap to ensure continuous visibility
• Spring washers for constant torque
• Recessed gasket face in chamber and cover
• Custom built per specifications
• Yellow Cadmium plated bolts, nuts and washers
• High temperature coating
• See-Level Illuminator with amber lighting available for easy viewing of levels in steam applications

The Steam-Trac ST-1000 is designed for steam service to 1000 PSI. Built to withstand the most demanding environments, the rugged ST-1000 can be configured to replace less durable and more expensive competitive models, or for specific construction projects.

To reduce expensive maintenance cycles, the ST-1000 chamber is machined out of plate instead of square bar to minimize lateral deflection of the gage chamber, which is the primary cause of gasket or mica failure in steam gages.

Consistent load on the gage cover is ensured with the liberal use of spring washers.

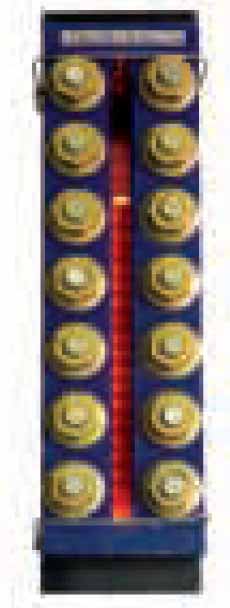

ST-1600
with SLI-A Illuminator

• Fully ASME compliant
• Multiple sections with minimum 1'' overlap
• Spring washers for constant torque
• Cadmium plated bolts, nuts and washers
• High temperature coating
• See-Level Illuminator with amber lighting available for easy viewing of levels in steam applications

Steam-Trac ST-1600 steam gages are ruggedly built to set the industry standard for reliability in the difficult mid-pressure range from 1000 to 1600 PSI Working Steam Pressure.

All materials and construction standards are within strict compliance of ASME Section 1 code requirements.

The Steam-Trac ST-1600 can be configured to replace less durable, more expensive competitive models, or for specific construction projects. Visible range must be achieved by using multiple sections with a 1'' minimum overlap to ensure continuous visibility, as required by ASME Section 1, PG-60.

• Fully ASME compliant
• Large, easy to read ports
• All lengths with continuous chamber
• Innovative illuminator design
• Cadmium plated bolts, nuts and washers
• High temperature coating

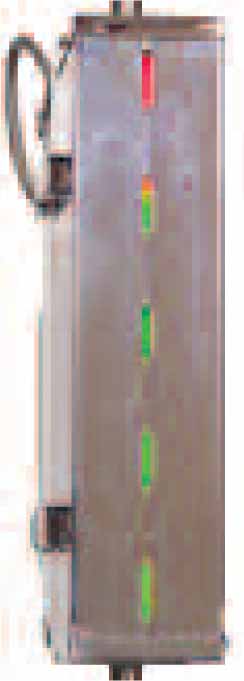

The Steam-Trac STB-3000 Bi-Color Ported Gage must be used with a red/green filter illuminator. The gage chamber is constructed with opposing ports at an angle so that red light will pass unimpeded through the gage in the steam phase. When water is present, refraction will only allow green light to pass through, resulting in a clear visual indication of water level.
The STBI-3000 Illuminator matches long lasting LED lamps to a rugged fabricated enclosure to set an unsurpassed standard of reliability for bi-color water gage illumination.

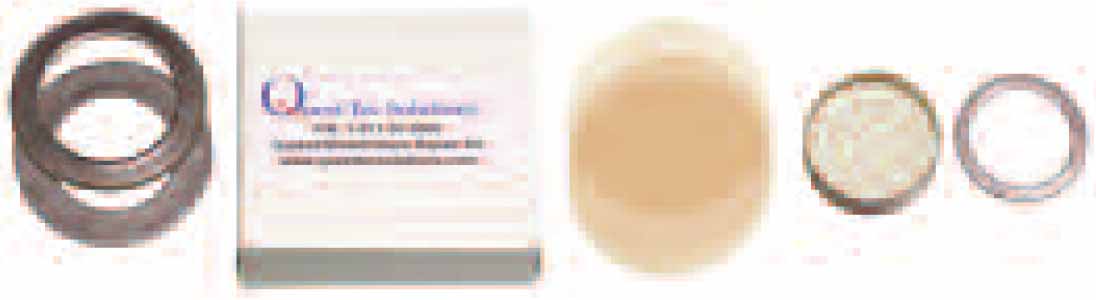

• High quality and competitively priced repair kits and modules
• Tempered aluminosilicate glass, HQ Ruby Mica and Spiral Wound Grafoil Gaskets supplied as standard
• Quick and easy replacement
